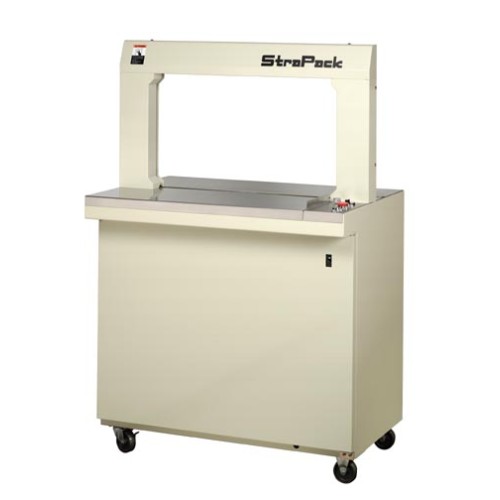

The Strapack SQ-800IR combines the proven performance of the SQ-800 platform with a compact, space-efficient cabinet and internal strap reel. It is an excellent choice for printing, mailing, office and other applications where floor space is limited but full automatic strapping performance is still required.

The SQ-800IR incorporates automatic strap loading, automatic re-feed and loop ejection in a compact design that uses a standard-size strap coil. Its upgraded sealing head uses DC motors to reduce moving parts, strap dust and maintenance requirements, while Strapack's self-lubricating design helps extend operational life.

The standard 690 mm (27") wide arch is specifically suited to applications such as U.S. Mail trays and other packages requiring a wider opening.

Key Specifications

• Speed: up to 54 straps/min
• Tension: digitally adjustable up to 176 lbf
• Strap widths: 1/4", 3/8", 1/2"
• Strap type: polypropylene
• Standard arch: 690 mm W × 400 mm H (approx. 27" × 16")
• Maximum package size: 620 mm W × 380 mm H (approx. 24-1/2" × 15")
• Minimum package size: 80 mm W × 30 mm H (approx. 3-1/8" × 1-1/8")
• Machine dimensions: 916 mm W × 1394 mm H × 609 mm D (approx. 36" W × 54-7/8" H × 24" D)
• Table height: 885 mm (34-7/8")
• Machine weight: approximately 277 lb (151 kg)
• Power: 100/120/220/230/240V, single phase, 50/60Hz
• Power consumption: 0.74 KVA
• Internal strap reel
• Automatic re-feed and loop ejection
• Self-lubricating design

Resources

• Download SQ-800IR Specification Sheet
