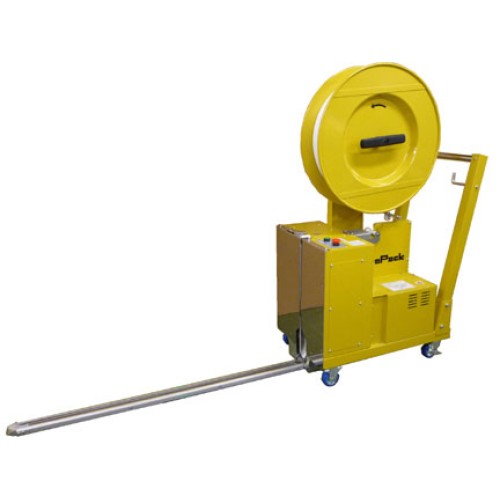

The Strapack AQ-7PLT is a portable pallet strapping machine designed for securing palletized loads with polypropylene or PET strapping. Its low sealing position, adjustable bayonet and high-tension capability make it well suited for a wide range of pallet sizes and industrial shipping applications.

The AQ-7PLT can use either PET or polypropylene strap and accommodates both embossed and smooth strap. The machine can also be configured for different coil sizes, making it flexible for a variety of warehouse and production environments.

A low sealing point of approximately 326 mm (13") from the floor allows the AQ-7PLT to strap smaller or lower pallets. The adjustable bayonet can be positioned at two heights to accommodate different pallet openings and enable cross-strapping through 4-way pallets.

Heavy-duty casters make the machine easy to move between work areas, and the bayonet folds upward for compact, safer storage when the machine is not in use.

Key Specifications

• Strap types: polypropylene (PP) and PET
• Strap widths: 3/8", 1/2", 5/8"
• Maximum strap tension: approximately 264 lbf
• Sealing method: heat seal
• Lower sealing point: approximately 326 mm (13") from floor
• Adjustable bayonet height: approximately 10 mm or 35 mm
• Designed for 4-way pallet entry and cross-strapping
• Package height: approximately 390 mm (15") minimum and above
• Machine width: 2085 mm with bayonet extended
• Machine width with bayonet folded: approximately 883 mm
• Machine height: 1395 mm
• Machine depth: 506 mm
• Machine weight: approximately 286 lb (130 kg)
• Power: 100/110/120/200/220/230/240V, single phase, 50/60Hz
• Power consumption: 0.65 KVA
• Portable design with heavy-duty casters
• Folding bayonet for compact storage
