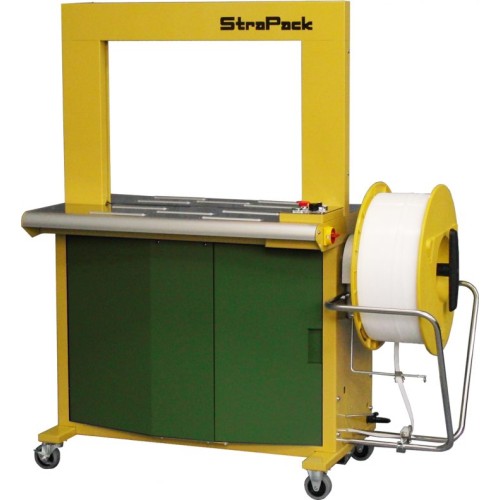

The Strapack SQ-800 is a high-speed automatic strapping machine designed for dependable, general-purpose industrial packaging. Its brushless DC motor delivers improved efficiency while retaining the proven reliability of the RQ-8X platform. Automatic refeed, loop ejection, easy strap loading and lubrication-free operation help reduce downtime and maintenance.
The SQ-800 operates at up to 55 straps per minute, even when tension is applied, and is ready to operate in less than 25 seconds. The digitally controlled tension system provides a wide range of tension up to 176 lbf without reducing cycle speed.
The SQ-800 is the current-generation replacement for the popular Strapack RQ-8X. It comes standard with roller tables for easy package loading and unloading and is designed for low maintenance, long-term reliability and low repair costs.
Warranty: 6-month parts warranty.
Key Specifications
- Speed: 55 straps/min
- Tension: up to 176 lbf
- Strap widths: 1/4", 3/8", 1/2"
- Standard power: 110V, single phase; three-phase optional
- Brushless DC motor
- Automatic refeed and loop ejection
Select the desired arch size and available options below. Starting price is $9,000.00 for the 650 mm W × 400 mm H configuration. Larger arch sizes and selected options will increase the final machine price. Contact Packsource Systems if you would like help configuring the machine for your application.
Freight: Shipping for a standard SQ-800 averages approximately $400 to a commercial address. Larger arch sizes, rural or remote destinations, residential delivery, liftgate service and other special requirements may result in additional freight charges. We will confirm the final freight cost before shipment.
Resources
Strapack SQ-800 Automatic Strapping Machine
- Product Code: SQ-800
- Availability: In Stock
-
Starting at $9,000.00
